Dodge 1920 Antique Automotive Wiring Blueprint. + Dorris 1913 H:
$39.00

Dodge 1920 Antique Automotive Wiring Blueprint. + Dorris 1913 H

This is an antique automotive wiring diagram blueprint that can be used to troubleshoot or be framed and displayed with the matching vehicle. Very old but in pretty good shape for its age. See photos for details.

The blueprints are double sided and include various wiring diagrams.

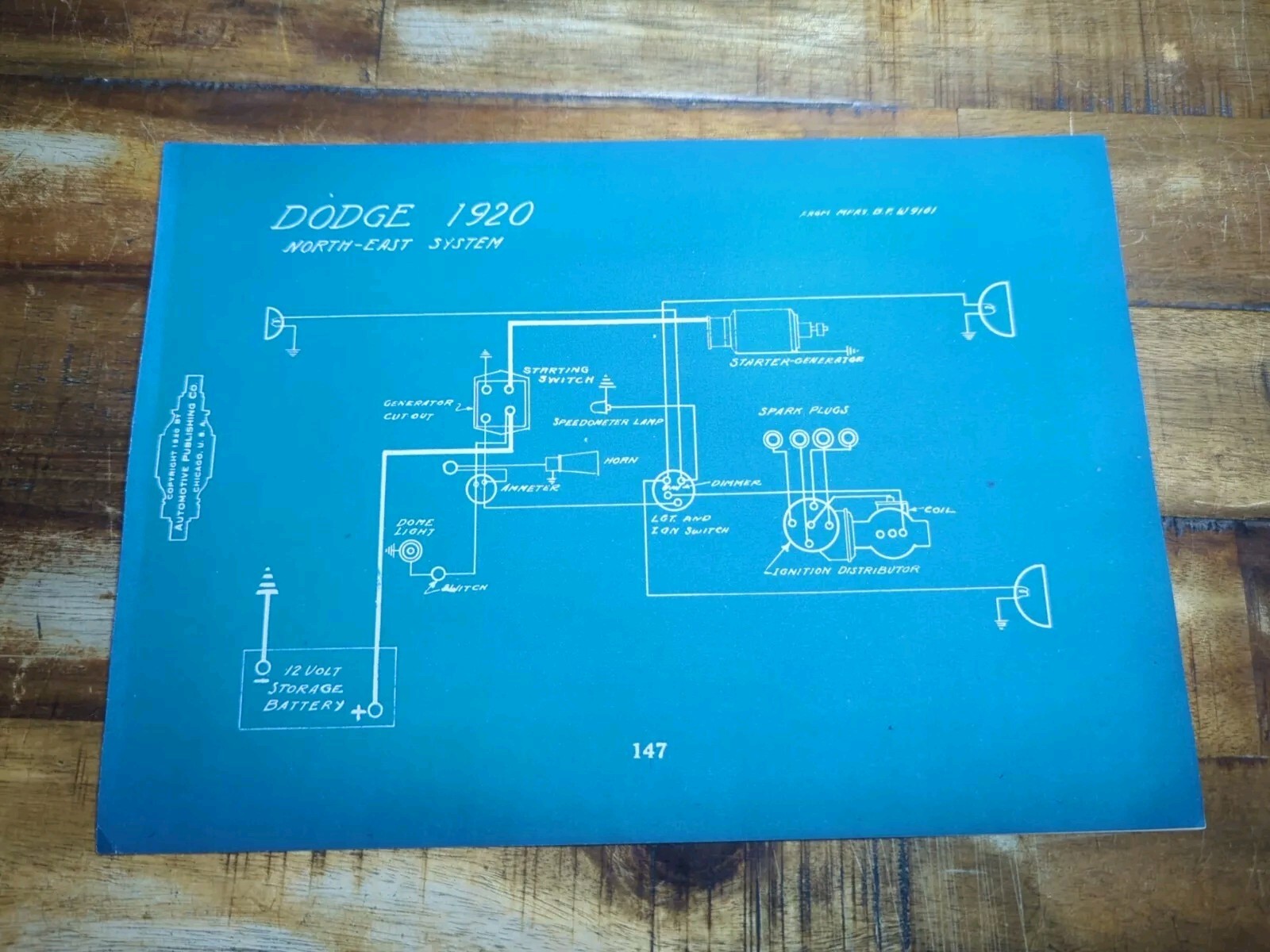

Dodge 1920 North East System

Dorris 1913 H Westinghouse System

The Blueprint measurements are

Width: 10.5\"

Height: 7.5\"
